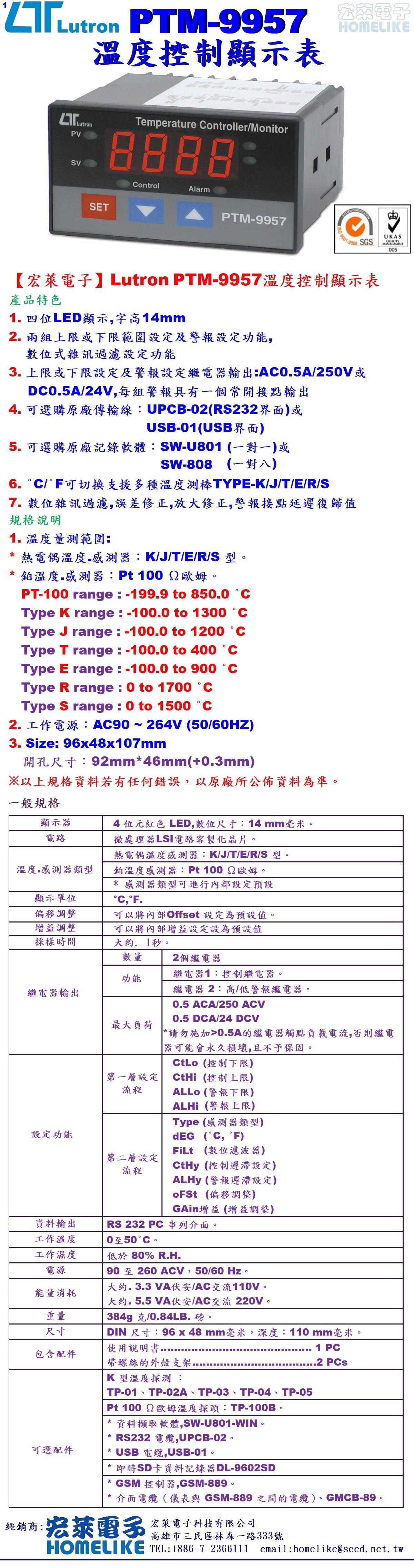

| 【宏萊電子】Lutron PTM-9957 溫度控制顯示表
產品特色 1. 四位LED顯示,字高14mm 2. 兩組上限或下限範圍設定及警報設定功能,數位式雜訊過濾設定功能 3. 上限或下限設定及警報設定繼電器輸出:AC0.5A/250V或DC0.5A/24V,每組警報具有一個常開接點輸出 4. 可選購原廠傳輸線：UPCB-02(RS232界面)或USB-01(USB界面) 5. 可選購原廠記錄軟體：SW-U801 (一對一)或SW-808(一對八) 6. °C/°F可切換支援多種溫度測棒TYPE-K/J/T/E/R/S 7. 數位雜訊過濾,誤差修正,放大修正,警報接點延遲復歸值 規格說明 1. 溫度量測範圍: * 熱電偶溫度.感測器：K/J/T/E/R/S 型。 * 鉑溫度.感測器：Pt 100 Ω歐姆。 PT-100 range : -199.9 to 850.0 °C Type K range : -100.0 to 1300 °C Type J range : -100.0 to 1200 °C Type T range : -100.0 to 400 °C Type E range : -100.0 to 900 °C Type R range : 0 to 1700 °C Type S range : 0 to 1500 °C 2. 工作電源：AC90 ~ 264V (50/60HZ) 3. Size: 96x48x107mm 開孔尺寸：92mm*46mm(+0.3mm) ※以上規格資料若有任何錯誤，以原廠所公佈資料為準。         |
| 【宏萊電子】Lutron PTM-9957溫度控制顯示表

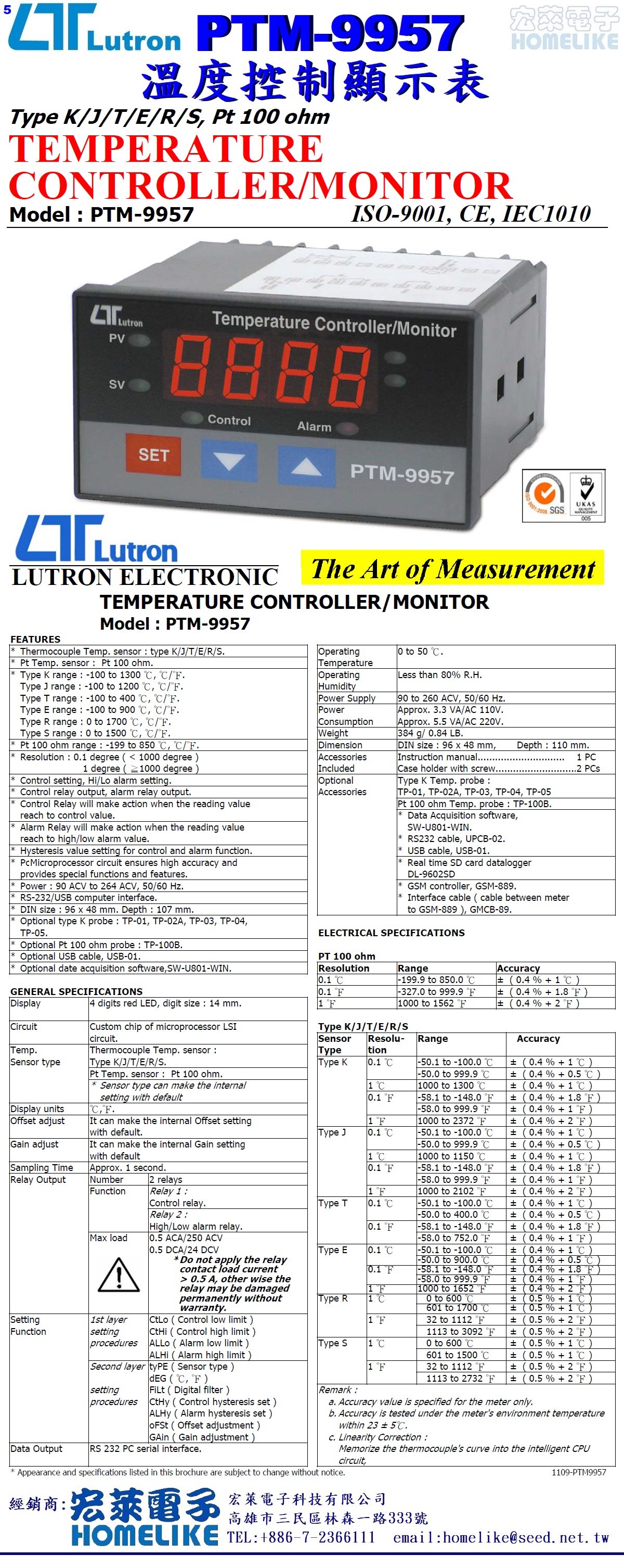

產品特色 1. 四位LED顯示,字高14mm 2. 兩組上限或下限範圍設定及警報設定功能,數位式雜訊過濾設定功能 3. 上限或下限設定及警報設定繼電器輸出:AC0.5A/250V或DC0.5A/24V,每組警報具有一個常開接點輸出 4. 可選購原廠傳輸線：UPCB-02(RS232界面)或USB-01(USB界面) 5. 可選購原廠記錄軟體：SW-U801 (一對一)或SW-808(一對八) 6. °C/°F可切換支援多種溫度測棒TYPE-K/J/T/E/R/S 7. 數位雜訊過濾,誤差修正,放大修正,警報接點延遲復歸值 規格說明 1. 溫度量測範圍: * 熱電偶溫度.感測器：K/J/T/E/R/S 型。 * 鉑溫度.感測器：Pt 100 Ω歐姆。 PT-100 range : -199.9 to 850.0 °C Type K range : -100.0 to 1300 °C Type J range : -100.0 to 1200 °C Type T range : -100.0 to 400 °C Type E range : -100.0 to 900 °C Type R range : 0 to 1700 °C Type S range : 0 to 1500 °C 2. 工作電源：AC90 ~ 264V (50/60HZ) 3. Size: 96x48x107mm 開孔尺寸：92mm*46mm(+0.3mm) ※以上規格資料若有任何錯誤，以原廠所公佈資料為準。 FEATURES Thermocouple Temp. sensor : type K/J/T/E/R/S. Pt Temp. sensor : Pt 100 ohm. Type K range : -100 to 1300 ℃, ℃/℉. Type J range : -100 to 1200 ℃, ℃/℉. Type T range : -100 to 400 ℃, ℃/℉. Type E range : -100 to 900 ℃, ℃/℉. Type R range : 0 to 1700 ℃, ℃/℉. Type S range : 0 to 1500 ℃, ℃/℉. Pt 100 ohm range : -199 to 850 ℃, ℃/℉. Resolution : 0.1 degree ( < 1000 degree ) 1 degree ( ≧1000 degree ) Control setting,Hi/Lo alarm setting Control relay output alarm relay output Control Relay will make action when the reading value reach to control value. Alarm Relay will make action when the reading value reach to high/low alarm value. Hysteresis value setting for control and alarm function. Microprocessor circuit ensures high accuracy and provides special functions and features. Power : 90 ACV to 264 ACV, 50/60 Hz. RS-232/USB computer interface. DIN size : 96 x 48 mm. Depth : 107 mm. Optional type K probe : TP-01, TP-02A, TP-03, TP-04, TP-05. Optional Pt 100 ohm probe : TP-100B. Optional USB cable, USB-01. Optional date acquisition software,SW-U801-WIN. 一般規格 顯示 (Display) 4 digits red LED, digit size : 14 mm. 電路 (Circuit) Custom chip of microprocessor LSI circuit. 溫度感應器型式 (Temp.Sensor type ) Thermocouple Temp. sensor : Type K/J/T/E/R/S. Pt Temp.sensor : Pt 100 ohm. * Sensor type can make the internal setting with default 顯示單位 (Display units) ℃,℉. 補償調整 (Offset adjust) It can make the internal Offset setting with default. 增益調整 (Gain adjust) It can make the internal Gain setting with default 取樣時間 (Sampling Time) Approx. 1 second. 繼電器輸出 (Relay Output) Number : 2 relays Function : Relay 1 : control relay. Relay 2 : High/Low alarm relay. Max load : 1 ACA/250 ACV ; 1 DCA/24 DCV *Do not apply the relay contact load current > 0.5 A, other wise the relay may be damaged permanently without warranty. 設定功能 (Setting Function) 1st layer setting procedures CtLo ( Control low limit ) CtHi ( Control high limit ) ALLo ( Alarm low limit ) ALHi ( Alarm high limit ). Second layer setting procedures tyPE ( Sensor type ) dEG ( ℃, ℉ ) FiLt ( Digital filter ) CtHy ( Control hysteresis set ) ALHy ( Alarm hysteresis set ) oFSt ( Offset adjustment ) GAin ( Gain adjustment ) 資料輸出 (Data Output) RS 232 PC serial interface. 操作溫度 (Operating Temperature) 0 to 50 ℃. 操作溼度 (Operating Humidity) Less than 80% R.H. 電源供應 (Power Supply) 90 to 260 ACV, 50/60 Hz. 重量 (Weight) 384 g/ 0.84 LB. 電源損耗 (Power Consumption) Approx. 3.3 VA/AC 110V. Approx. 5.5 VA/AC 220V. 體積大小 (Dimension) DIN size : 96 x 48 mm. Depth : 110 mm. 附件 (Accessories Included) Instruction manual......................1 PC Case holder with screw................. 2 PCs 選購附件 (Optional Accessories) Type K Temp. probe : TP-01, TP-02A, TP-03, TP-04, TP-05 Pt 100 ohm Temp. probe : TP-100B. Data Acquisition software, SW-U801-WIN. RS232 cable, UPCB-02. USB cable, USB-01. Real time SD card datalogger DL-9602SD GSM controller, GSM-889. Interface cable ( cable between meter to GSM-889 ), GMCB-89 |
