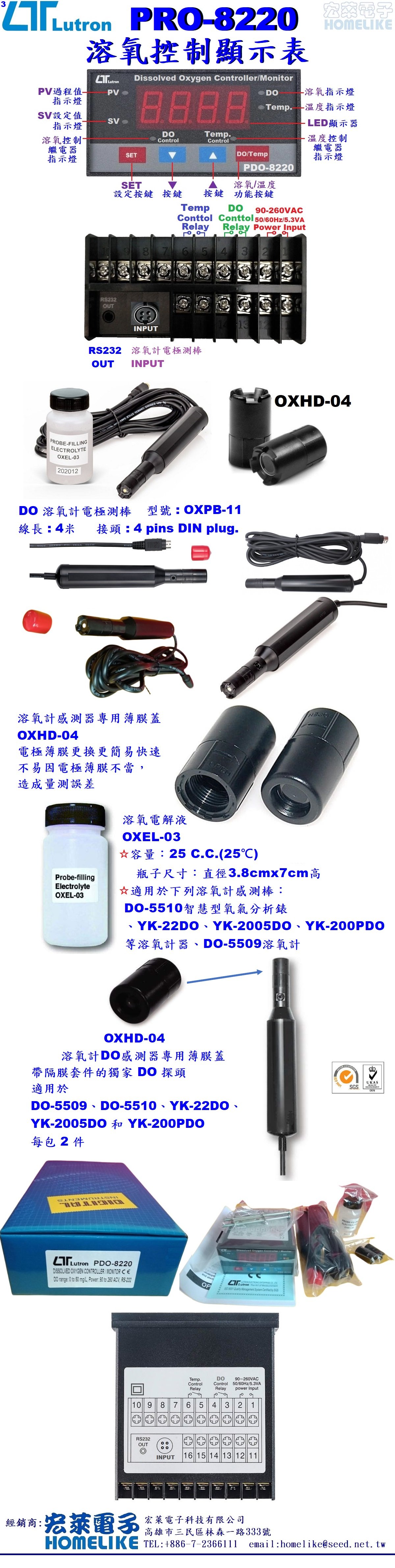

| 【宏萊電子】Lutron PDO-8220 溶氧控制顯示表

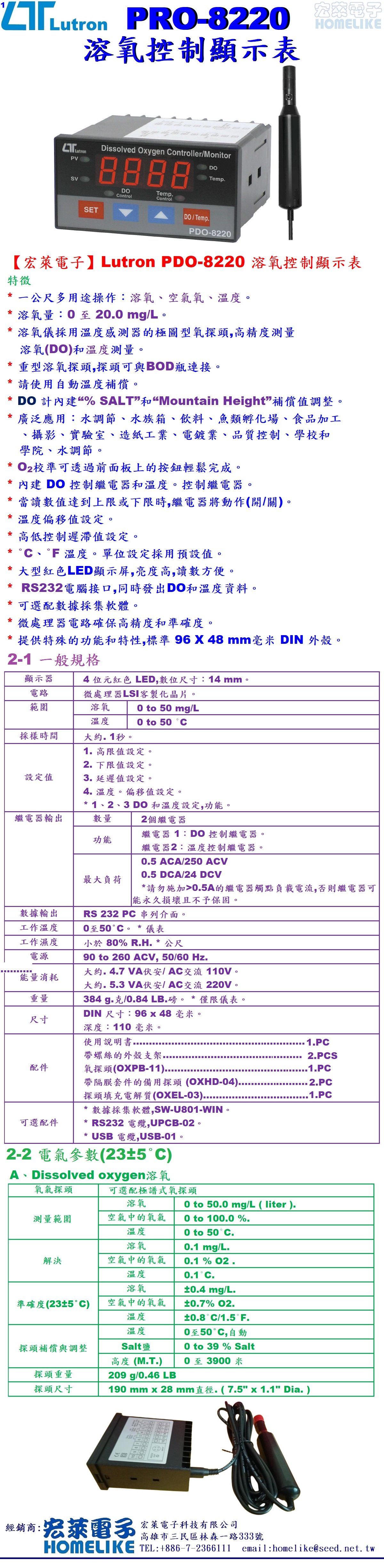

1.溶氧範圍：0~50.0mg/L±0.4mg/L 2.氧氣範圍：0-100% 3.溫度範圍：0~50.0°C.±0.8°C 4.上/下限範圍設定及警報設定 5.上/下限設定及警報設定繼電器輸出 6.工作電源：AC90~264V(50/60Hz) 7.RS-232/USB連接介面(選購) 8.尺寸：96*48*107mm 9.溶氧補償設定(溫度/鹽分/高度) 10.溶氧電極線長5M，可完全投入水中 11.溶氧電極尺寸：長190mmx直徑28mm          |
| 【宏萊電子】Lutron PDO-8220 溶氧控制顯示表

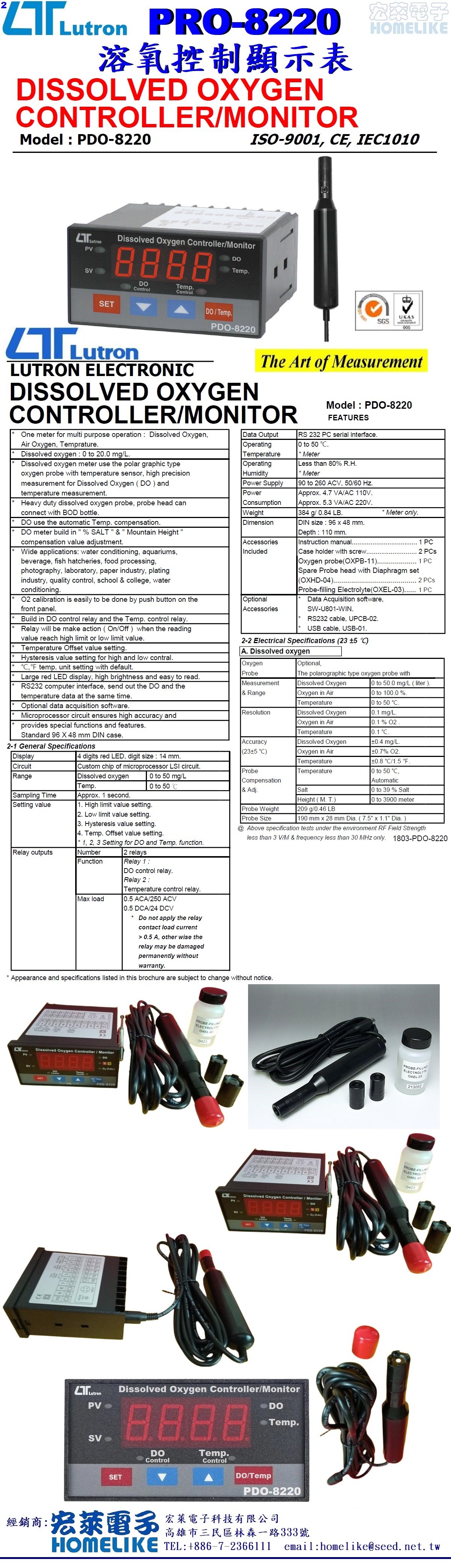

1.溶氧範圍：0~50.0mg/L±0.4mg/L 2.氧氣範圍：0-100% 3.溫度範圍：0~50.0°C.±0.8°C 4.上/下限範圍設定及警報設定 5.上/下限設定及警報設定繼電器輸出 6.工作電源：AC90~264V(50/60Hz) 7.RS-232/USB連接介面(選購) 8.尺寸：96*48*107mm 9.溶氧補償設定(溫度/鹽分/高度) 10.溶氧電極線長5M，可完全投入水中 11.溶氧電極尺寸：長190mmx直徑28mm FEATURES One meter for multi purpose operation : Dissolved Oxygen, Air Oxygen, Temprature. Dissolved oxygen : 0 to 20.0 mg/L. Dissolved oxygen meter use the polar graphic type oxygen probe with temperature sensor, high precision measurement for Dissolved Oxygen ( DO ) and temperature measurement. Heavy duty dissolved oxygen probe, probe head can connect with BOD bottle. DO use the automatic Temp. compensation. DO meter build in " % SALT " & " Mountain Height " compensation value adjustment. Wide applications: water conditioning, aquariums, beverage, fish hatcheries, food processing, photography, laboratory, paper industry, plating industry, quality control, school & college, water conditioning. O2 calibration is easily to be done by push button on the front panel. Build in DO control relay and the Temp. control relay. Relay will be make action ( On/Off ) when the reading value reach high limit or low limit value. Temperature Offset value setting. Hysteresis value setting for high and low contral. ℃,℉ temp. unit setting with default. Large red LED display, high brightness and easy to read. RS232 computer interface, send out the DO and the temperature data at the same time. Optional data acquisition software. Microprocessor circuit ensures high accuracy and provides special functions and features. Standard 96 X 48 mm DIN case. 一般規格 顯示 (Display) 4 digits red LED, digit size : 14 mm. 電路 (Circuit) Custom chip of microprocessor LSI circuit. 測量及範圍 (Measurement & Range) Dissolved Oxygen : 0 to 50.0 mg/L Temperature 0 : to 50 ℃. 取樣時間 (Sampling Time) Approx. 1 sec 設定值 (Setting value) 1. High limit value setting. 2. Low limit value setting. 3. Hysteresis value setting. 4. Temp. Offset value setting. * 1, 2, 3 Setting for DO and Temp. function. 繼電器輸出 (Relay Output) Number : 2 relays Function : Relay 1 : DO control relay. Relay 2 : Temperature control relay. Max load : 0.5 ACA/250 ACV 0.5 DCA/24 DCV *Do not apply the relay contact load current > 0.5 A, other wise the relay may be damaged permanently without warranty. 資料輸出 (Data Output) RS 232 PC serial interface. 操作溫度 (Operating Temperature) 0 to 50 ℃. 操作溼度 (Operating Humidity) Less than 80% R.H. 電源供應 (Power Supply) 90 to 260 ACV, 50/60 Hz. 電源損耗 (Power Consumption) Approx. 4.7 VA/AC 110V. Approx. 5.3 VA/AC 220V. 重量 (Weight) 384 g/ 0.84 LB. 體積大小 (Dimension) DIN size : 96 x 48 mm. Depth : 110 mm. 附件 (Accessories Included) Instruction manual......................1 PC Case holder with screw................. 2 PCs Oxygen probe(OXPB-11)............................1 PC Spare Probe head with Diaphragm set (OXHD-04).........2 PCs Probe-filling Electrolyte(OXEL-03)....................1 PC 選購附件 (Optional Accessories) Data Acquisition software, SW-U801-WIN. RS232 cable, UPCB-02. USB cable, USB-01. 溶氧電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃) 溶氧測棒 (Oxygen Probe) Optional,The polarographic type oxygen probe with 測量及範圍 (Measurement & Range) Dissolved Oxygen：0 to 50.0 mg/L ( liter ). Oxygen in Air：0 to 100.0 %. Temperature：0 to 50 ℃. 解析度 (Resolution) Dissolved Oxygen：0.1 mg/L. Oxygen in Air：0.1 % O2 . Temperature：0.1 ℃. 精確度 (Accuracy)(23±5 ℃) Dissolved Oxygen：±0.4 mg/L. Oxygen in Air：±0.7% O2. Temperature：±0.8 ℃/1.5 ℉. 測棒補償及調整 (Probe Compensation & Adj.) Temperature：0 to 50 ℃, Automatic Salt：0 to 39 % Salt Height ( M. T.)：0 to 3900 meter 測棒重量 (Probe Weight) 209 g/0.46 LB 測棒尺寸 (Probe Size) 190 mm x 28 mm Dia. ( 7.5" x 1.1" Dia. ) |
